What to know about CNC machining titanium?

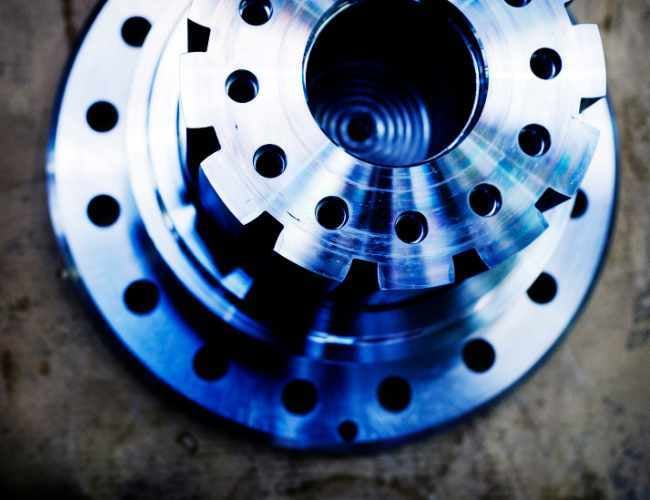

Titanium CNC machining is the computer-controlled removal of material from a titanium workpiece to make a precise finished part.

It is often used for complex, high-performance parts when titanium’s strength-to-weight ratio, corrosion resistance, and durability justify its higher material and machining costs—especially in aerospace, medical, and other demanding industries.

Titanium machining requires careful control of heat, tool wear, vibration, coolant, and chip removal. Because titanium conducts heat poorly, much of the heat generated during cutting stays near the cutting tool instead of moving through the workpiece. This can shorten tool life and affect the part’s surface finish and dimensional accuracy.

What are the advantages of CNC machining titanium?

CNC machining titanium combines the material’s high-performance properties with the precision and geometric freedom of computer-controlled manufacturing. It is especially valuable when a part must be light, strong, corrosion-resistant, and made to tight tolerances.

The main advantages include:

• High strength at low weight
• Corrosion resistance
• High-temperature capability
• Biocompatibility, ideal for medical
• Durability and fatigue performance

What are the challenges of CNC machining titanium?

Titanium is challenging to machine because it holds heat near the cutting edge, can react with cutting tools, and must be processed within a narrow range of carefully controlled conditions. Compared with easier-to-machine metals such as aluminum, this can slow production, shorten tool life, and increase the risk of surface defects, dimensional variation, and other quality issues.

The main challenges include:

• Rapid tool wear and galling from heat buildup
• Work hardening
• Vibration and chatter
• Difficult chip control

The most widely used titanium alloy for CNC machined parts is Grade 2 and Grade 5. Any of the commercially pure 1-4 grades are commonly selected, as are several alloys --- especially Grade 5 (Ti-6Al-4V).

Each alloy varies in strength, ductility, fatigue behavior, thermal response, and machinability. Geometry selection, wall thickness limits, tolerance strategy, surface finish requirements, and inspection requirements should be selected based on the specific alloy chosen.

*Please note that these are estimates and intended to be used as a reference

How to pick the right titanium grade?

Grade 2 is the default option for titanium components, followed quickly by Grade 5. Like any alloy selection, the right titanium grade will depend on the component's end-use application and environment.

Quick selection guide:

• Need corrosion resistance or weldability? Grade 2
• Need good strength-to-weight ratio? Grade 5
• Need biocompatibility? Grade 23

For most general titanium CNC parts, a fine machined or bead-blasted finish is the best surface finish option since titanium naturally develops a protective oxide film. There is no single best finish for titanium. The best surface finish option will depend on whether ear resistance, low roughness, medical performance, or cosmetics is the priority.

Titanium parts can be finished with media blasting, vibratory tumbling, passivation, powder coating, electroplating, or anodizing. For parts with sliding or fretting surfaces, Type II anodizing is the best functional post-process.

Important surface finish considerations:

• Tight tolerances amplify tool wear and inspection burden
• Thin features are prone to spring‑back after machining
• Surface finish degrades rapidly with worn tooling
• Secondary processes can alter critical dimensions
• Datum strategy strongly influences achievable repeatability

Designing titanium parts starts with machining stability. Titanium's high strength can tempt aggressive wall thinning and tall, narrow features, but its low modulus and poor thermal conductivity make those design features hard to machine.

DFM best practices for designing titanium components include:

• Prioritize stiff, thermally friendly geometry
• Avoid features that require long tool engagement, tiny cutters, and repeated spring passes
• Keep section thickness as consistent as possible
• Employ ribs instead of tall, thin free-standing walls
• Design for continuous toolpaths and avoid small islands/slots
