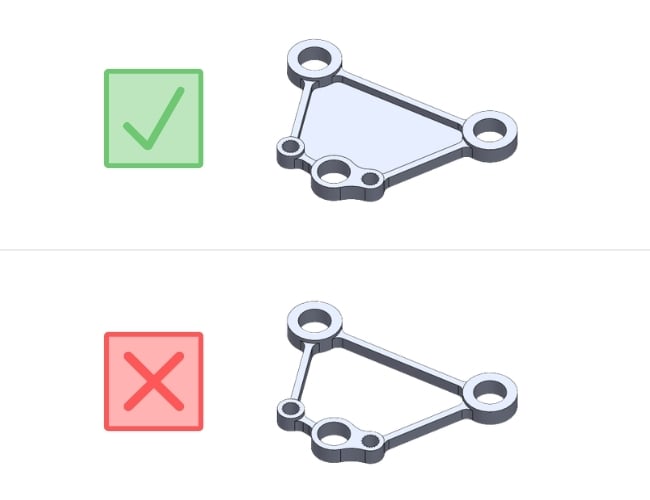

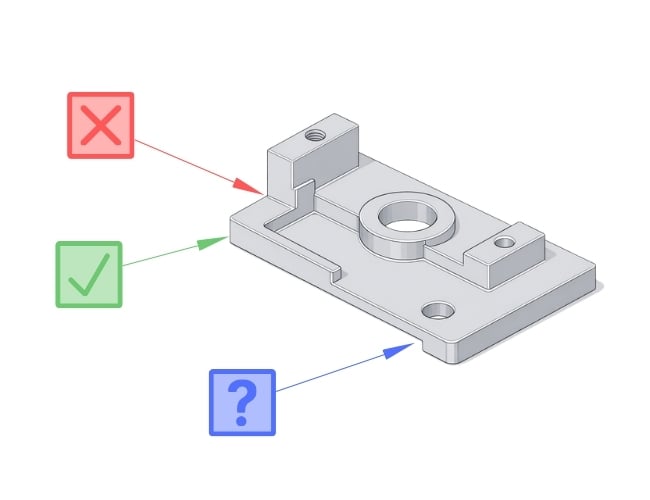

GD&T Building Blocks

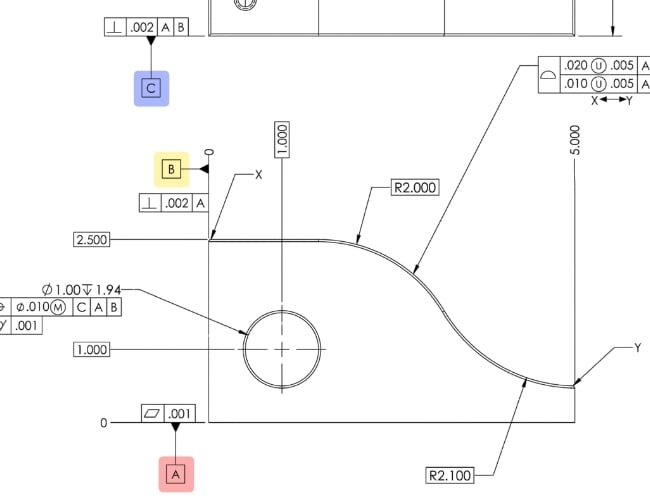

Datums
An ideal reference plane, axis, or point used to define dimensions, tolerances, and inspection
.jpg?width=650&height=500&name=FCF%20(1).jpg)

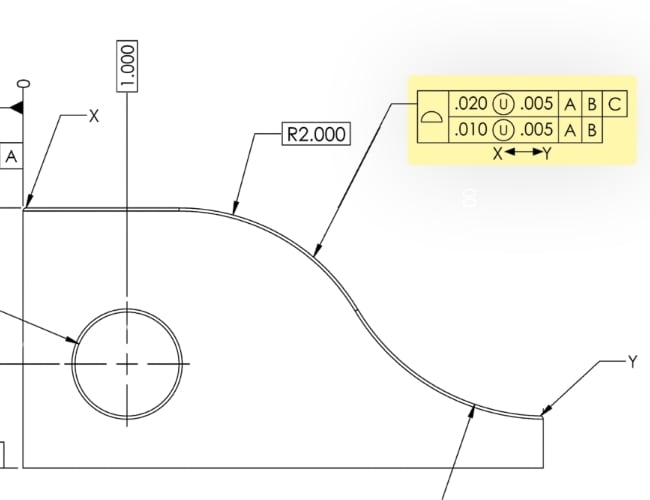

Feature Control Frame
A drawing symbol that defines a feature’s exact geometric tolerance and how it is inspected

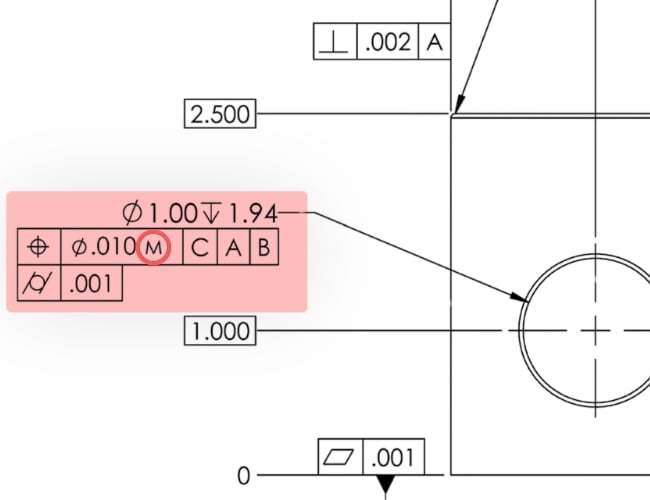

Material Condition Modifiers
Specifies how a tolerance applies relative to a feature's size limits - maximum material, least material, or regardless of size
GD&T Symbols
FORM TOLERANCE

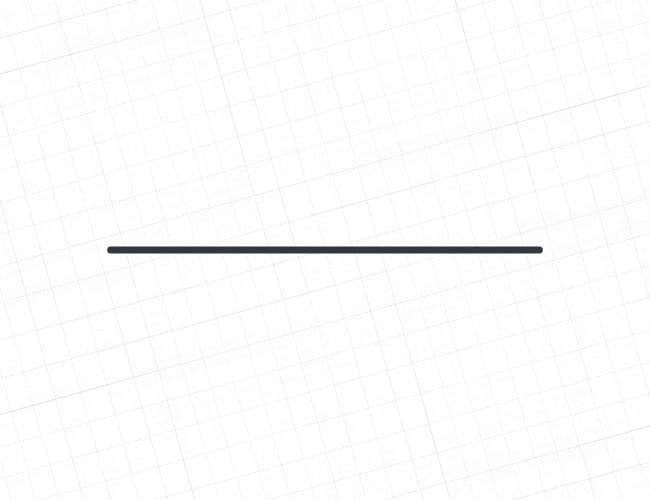

Straightness
The permissible deviation on long straight features like the axis of a shaft
FORM TOLERANCE

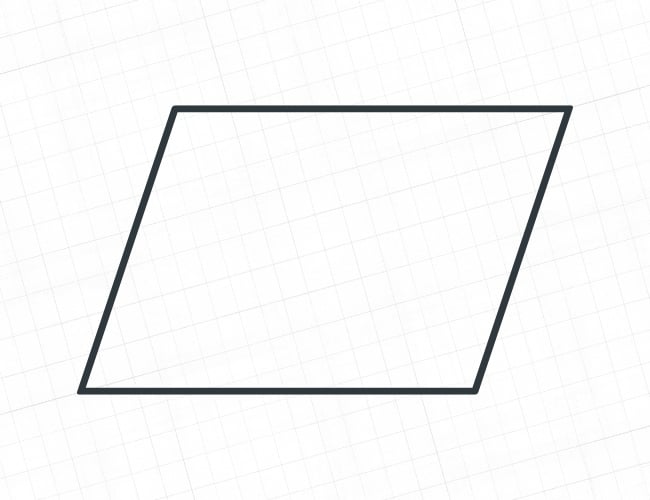

Flatness
The acceptable variation between the high and low points on a flat surface
FORM TOLERANCE

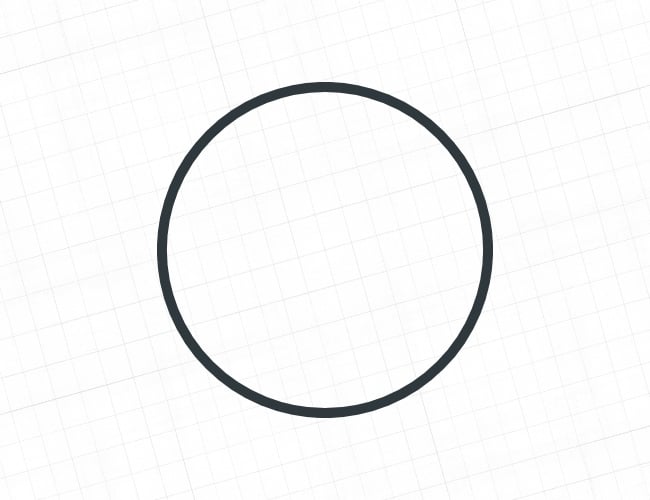

Roundness
The allowed deviation from a perfect circle on parts with circular cross-sections
FORM TOLERANCE

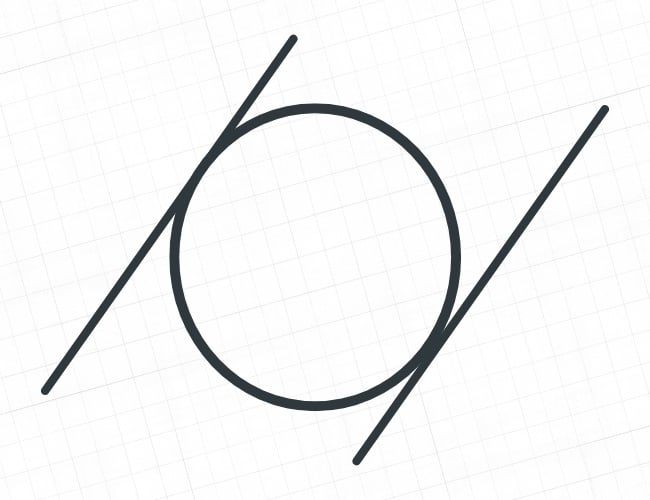

Cylindricity
The straightness and roundness tolerances of a cylindrical part
ORIENTATION TOLERANCE

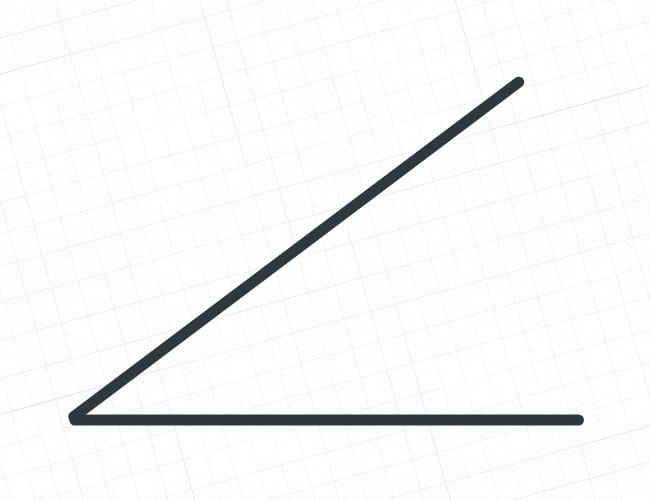

Angularity
The acceptable deviation of an angle with the datum being a straight line or plane
ORIENTATION TOLERANCE

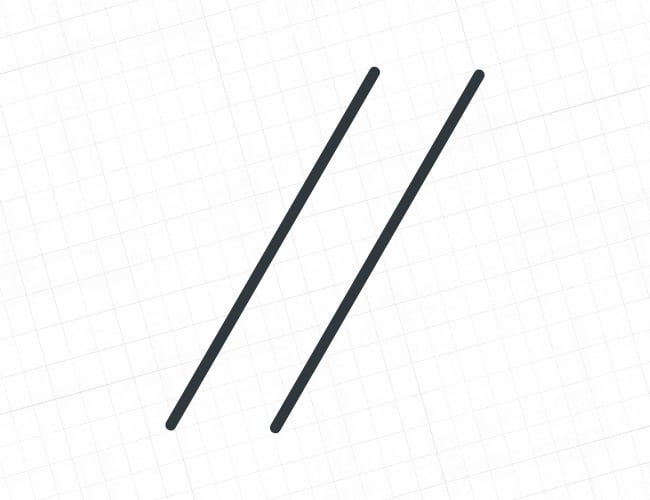

Parallelism
The permissible parallel deviation between a line or plane and a datum line or plane
ORIENTATION TOLERANCE

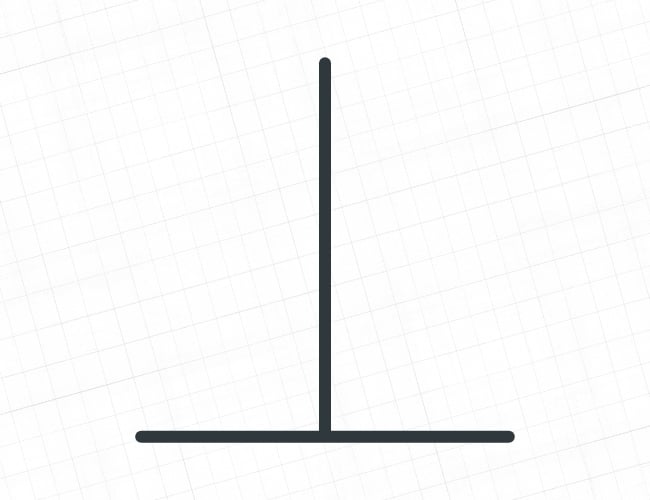

Perpendicularity
The acceptable deviation of a line or plane that's designed as perpendicular to the datum line or plane

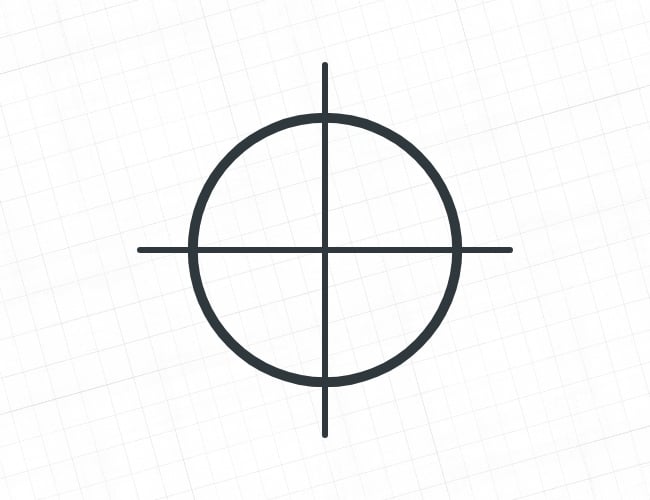

LOCATION TOLERANCE
Concentricity
The acceptable deviation between two cylinders that are designed to be concentric about the same central axis
LOCATION TOLERANCE

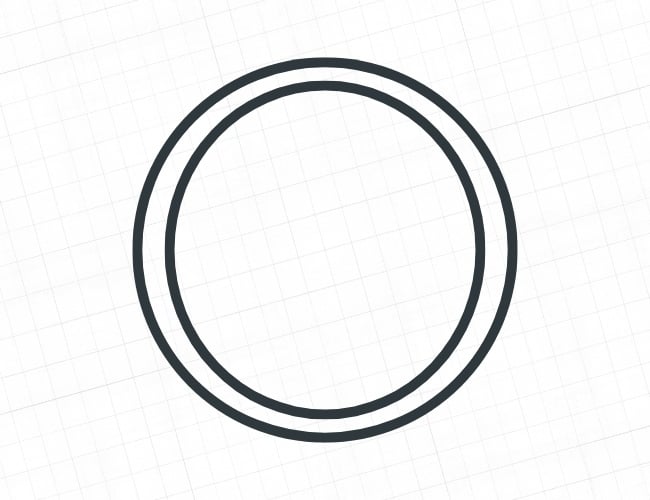

Coaxiality
The permissible coaxial deviation of the central axis of two cylinders
LOCATION TOLERANCE

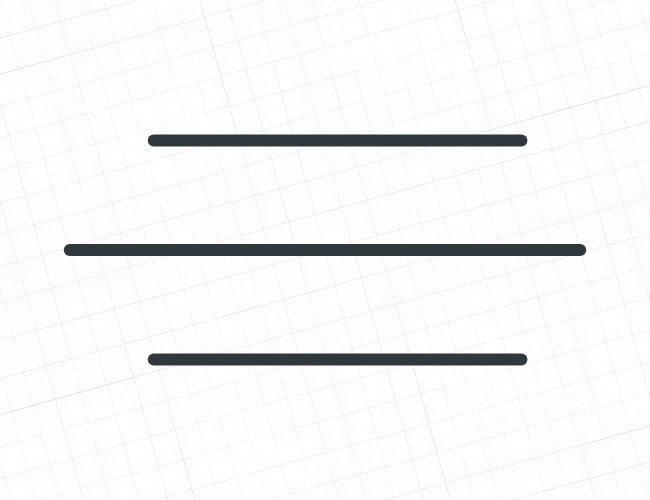

Symmetry
The allowable variation between two planes' symmetry
RUN-OUT TOLERANCE

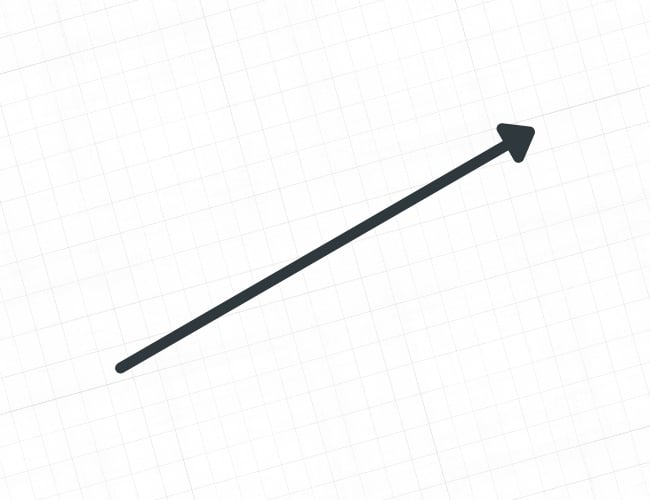

Circular Run-Out
The acceptable deviation of a cylindrical part at any point on its circumference
RUN-OUT TOLERANCE

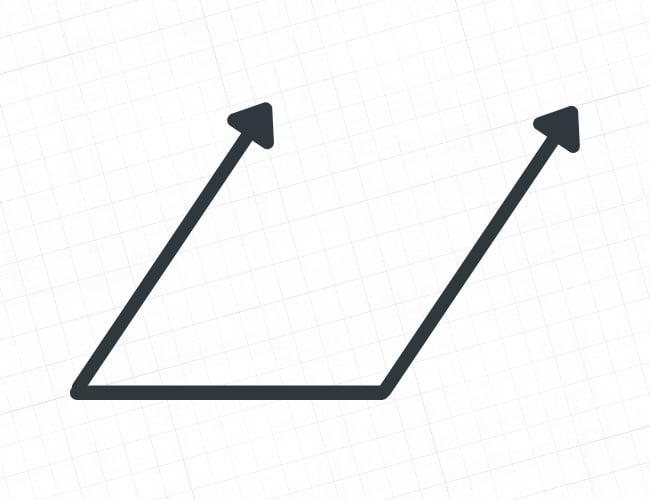

Total Run-Out
The acceptable deviation of a cylindrical part at any point on its curcumference and along its axis
PROFILE TOLERANCE

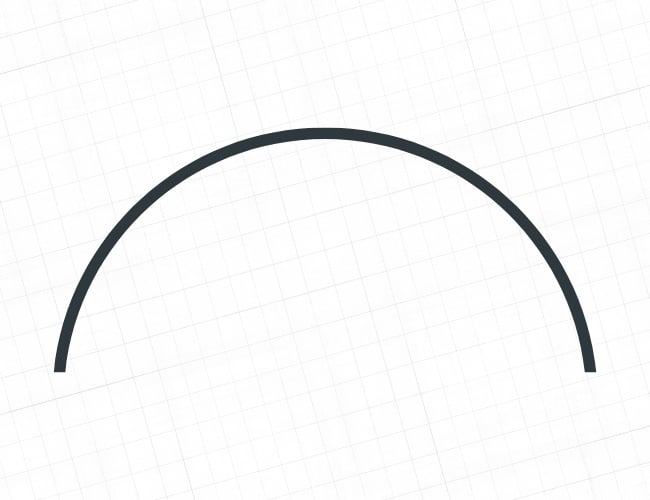

Line Profile
The permissible deviation of a curve as viewed from a cross-sectional perspective
PROFILE TOLERANCE

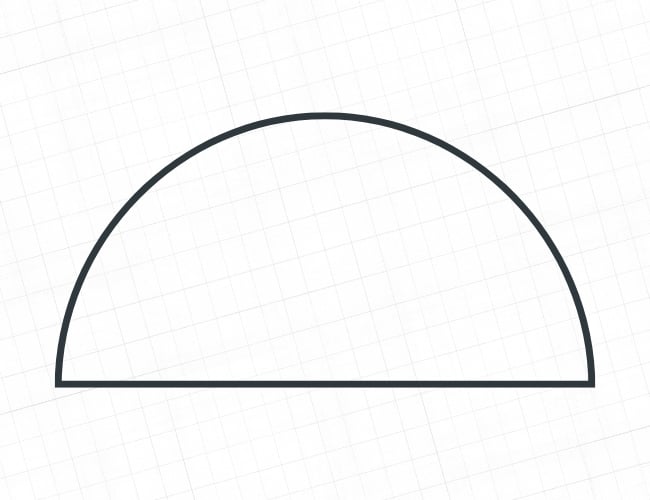

Surface Profile
The acceptable deviation of a surface along its entire surface area
