Surface Finishing
This article provides an overview of surface finishing options for metal components and guides you in choosing the right operations for your machining project.
Overview
Surface finishing methods protect and enhance the look of a machined component's surfaces. These methods may add or remove material, or use heat, electricity, or chemicals to alter a part's surface finish.
CNC surface finish and finishing methods are crucial when your part interacts with other components. For instance, ball bearings are designed to minimize rotational friction and support loads. As the races rotate, the balls also turn due to their contact. If the surfaces of the balls or races are not finished correctly, friction increases, leading to more wear and a shorter lifespan, even if the components meet geometric tolerances.
Media Blasting
Media blasting uses compressed air or water to shoot abrasive materials, known as "media," at high speeds onto a surface. This process cleans and prepares the surface for further treatment or finishing.
The type of abrasive material chosen for media blasting varies based on the task and the results you want to achieve.
Purpose: to achieve a smoother surface
Compatible Materials: most metals and plastics
Black Oxide
Black oxide is a coating applied by dipping a part into a sodium hydroxide and potassium nitrate solution. This process creates a black, smooth finish that enhances corrosion and wear resistance.
Purpose: to improve corrosion and wear resistance
Compatible Materials: mild steels, carbon steels, stainless steel, copper
Powder Coating
Powder coating involves using powdered plastic mixed with chemical agents like pigments and additives to create a strong finish on metal parts.
The powder is sprayed onto a part and sticks due to an electrostatic charge. The coating tool charges the powder particles while the part is grounded, drawing the particles to it. The part is then baked, turning the powder into a solid, durable, and corrosion-resistant coating. This process allows for various pigments and finishes. Sometimes, parts are preheated before spraying.
Purpose: to increase strength and provide a good base for dyeing
Compatible Materials: aluminum, stainless steel, steels, copper, brass, zinc
Electroless Nickel Plating
Electroless nickel plating is a technique that adds a nickel layer to a part's surface. This enhances the part's corrosion and wear resistance, as well as increases its hardness.
Purpose: a cost-effective way to improve surface finish
Compatible Materials: aluminum, stainless steel, mild steels, copper, brass, titanium
Eletropolishing
Electropolishing is a process used to improve the surface finish of metal parts. It involves the removal of a thin layer of material from the surface of a metal object using an electrochemical process.
Purpose: to achieve an even, shiny surface that’s corrosion resistance and highly weldable
Compatible Materials: stainless steel, aluminum, copper, brass, nickel alloys
Passivation
Passivation treats metal surfaces with an acid solution to remove free iron and contaminants, restoring a thin, protective oxide layer. This layer shields the metal from environmental reactions, reducing corrosion risk. It is often used on stainless steel and other metals to enhance resistance to rust, stains, and deterioration.
Purpose: to improve corrosion resistance
Compatible Materials: stainless steel, aluminum, titanium
Anodizing
Anodizing creates a thin layer on metal surfaces, offering protection against corrosion and wear. It only works with aluminum and titanium.
In Type II and Type III anodizing, the part is placed in a diluted sulfuric acid solution, and an electric voltage is applied. This causes a reaction that turns the surface into hard aluminum or titanium oxide. Masks can be used on areas that need to stay conductive or have precise dimensions, like threaded holes, to prevent anodizing. The anodized parts can also be dyed in various colors before sealing.
Type II anodizing, also known as "standard" or "decorative" anodizing, creates coatings up to 25 μm thick. The thickness varies by color: 8-12 μm for black-dyed parts and 4-8 μm for clear parts. This process is ideal for achieving a smoother surface, offering good corrosion resistance and some wear resistance.
Type III anodizing, known as "hardcoat" anodizing, creates coatings up to 125 μm thick, with a standard thickness of 50 μm. This process forms dense layers that offer superior corrosion and wear resistance, ideal for functional uses. It requires more precise control than Type II anodizing, involving higher current density and maintaining the solution temperature near 0 degrees Celsius, which increases the cost.
Adjusting the electric current, anodizing time, solution consistency, and temperature allows you to create coatings with varying thicknesses and densities.
Purpose: to impart a shiny, aesthetic finish that improves corrosion resistance
Compatible Materials: aluminum, titanium
Galvanizing
Galvanizing involves dipping steel into molten zinc. This process coats the steel with layers of zinc-iron alloy and zinc metal. The zinc reacts with the steel's iron content, forming a uniform, thick protective layer.
Purpose: to improve the part’s corrosion resistance
Compatible Materials: mild steels, carbon steels, iron
What is a surface finish in CNC machining?

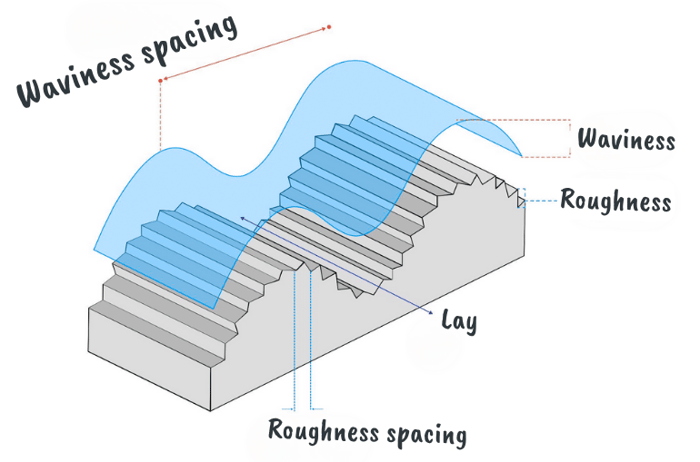

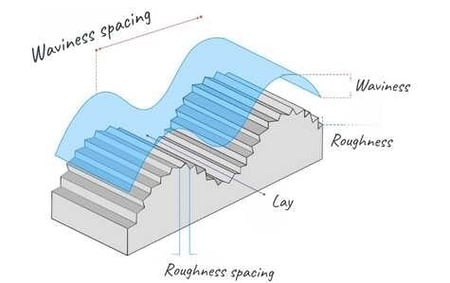

Surface finish encompasses the texture and quality of a machined component's surface, shaped by the precision of machining processes and the effectiveness of post-processing techniques to meet specific aesthetic and functional requirements.
Why is surface finish important in CNC machining?
The significance of surface finish lies in its impact on a component's visual appeal, operational efficiency, and overall performance. Achieving a refined surface finish can minimize friction, bolster wear resistance, and elevate the part's quality.
What are the common types of surface finishes in CNC machining?
Surface finishes vary, including rough and smooth machining, polished, brushed, anodized, and coated options. Each finish offers unique features and uses.
How is surface finish measured?
Surface finish is assessed using parameters like Ra (average roughness), Rz (maximum profile height), and Rt (total profile height). These are measured with tools such as profilometers and optical comparators.
What factors influence the surface finish of a machined part?
Surface finish is affected by the material being machined, the shape of the cutting tool, the speed and feed rate, the depth of the cut, and the machining process used.
How can surface finish be improved in CNC machining?
To enhance surface finish, adjust cutting parameters, use top-quality cutting tools, apply advanced machining techniques, and conduct post-processing like polishing, grinding, and coating.
What is the role of cutting tools in achieving a good surface finish?
Cutting tools are essential for achieving a smooth surface finish. The material, shape, and condition of the tool greatly affect the quality of the machined surface. Tools that are sharp and well-maintained deliver superior finishes.
How does material selection affect surface finish?
Choosing the right material impacts the surface finish. Softer materials often result in smoother finishes, while harder materials might need extra finishing steps.
What are some common post-processing techniques for improving surface finish?
Post-processing techniques like polishing, grinding, sanding, anodizing, and coating improve the look and function of machined parts by enhancing their surface quality.
How does surface finish impact the performance of a machined part?
The surface finish of a machined part affects its friction, wear resistance, corrosion resistance, and durability. A superior surface finish enhances the part's performance and longevity.
