Ductility in Metals

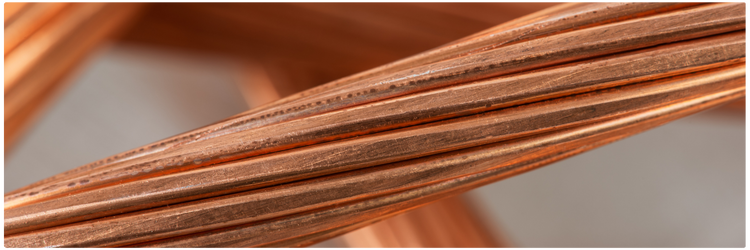

Metals exhibiting high ductility are characterized by metallic bonds that enable atoms to shift positions without compromising the integrity of the crystal lattice. This quality is critical in wire and cable manufacturing, as it allows materials to be drawn into fine shapes without failure. In contrast, materials with low ductility are prone to brittleness and tend to fracture rather than deform when subjected to stress.

A component’s ductility impacts its suitability for demanding environments and long-term service. Industries like construction, automotive, and aerospace have a strong demand for ductile materials to ensure both manufacturing efficiency and operational safety. As a result, ductility plays a pivotal role in shaping manufacturing strategies and in determining the strength, durability, and reliability of finished components and structures.

This article provides an overview of ductility, how to measure it, factors that affect ductility, relevant modes of failure, how ductility manifests in the most commonly machined metals, how ductility impacts machining operations, and a strategy for choosing the right metal for ductile applications.

What is Ductility and Why it Matters

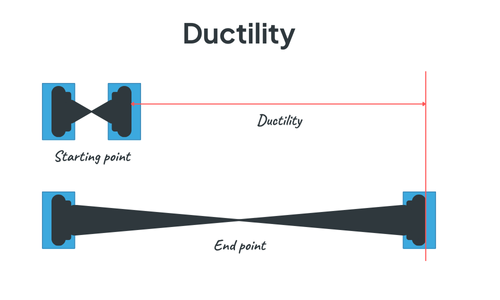

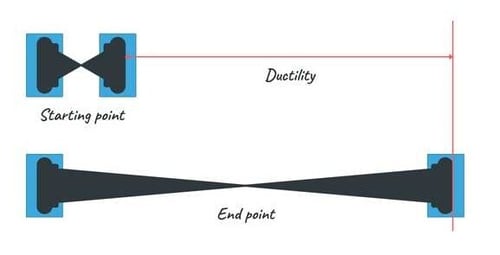

Ductility describes the extent to which a material can be elongated, stretched, or drawn into fine wires under tensile load without experiencing fracture.

It quantifies a material’s ability to sustain plastic deformation before breaking—a critical consideration in the production of wires, rods, cables, and thin metal sheets for a variety of industrial and engineering applications.

High Ductility

Metals with high ductility are more likely to undergo plastic deformation rather than fracture when subjected to stress. When a material possesses both substantial strength and ductility, it typically exhibits greater toughness, enabling it to absorb more energy before failure.

Low Ductility

Metals with low ductility are inherently brittle and tend to fracture with very little plastic deformation when exposed to tensile stress, making them susceptible to abrupt and catastrophic fracture under load.

Ductility differs significantly among metals and is influenced by several variables, including material purity and crystalline structure. Metals possessing tightly packed atomic arrangements—such as gold and silver—demonstrate notably higher ductility.

Factors that Affect Ductility

In addition to understanding the specific types of ductility found in metals, it's important to note the other factors that influence ductility and why one material might be better than the other for your project.

Composition

Ductility is heavily influenced by a metal’s composition. Alloying elements play a central role here. For example, adding carbon to steel increases hardness and strength but reduces ductility due to the formation of brittle phases like cementite. Similarly, impurities can segregate at grain boundaries, leading to embrittlement. On the other hand, elements like nickel or chromium used in solid solution strengthening can enhance strength while often compromising ductility, depending on the concentration and distribution.

Heat Treatment

Processes like annealing are designed to increase ductility by relieving internal stresses and promoting recrystallization, which restores a more uniform and deformable microstructure. In contrast, quenching followed by tempering can tailor the balance between strength and ductility, with higher tempering temperatures generally improving ductility. Precipitation hardening, common in aluminum and stainless steel alloys, can reduce ductility if not carefully controlled, especially when over-aging leads to coarse precipitates that hinder plastic flow.

Grain Size

Grain size also plays a significant role in ductility. Fine-grained materials typically exhibit higher strength due to the Hall-Petch effect, where grain boundaries impede dislocation motion. However, this can slightly reduce ductility. Coarser grains, while generally more ductile, may compromise strength and fatigue resistance. The behavior of grain boundaries is especially important in environments prone to stress corrosion cracking, where ductility can be severely impacted by intergranular attack.

Work Hardening

Work hardening boosts strength but reduces ductility, making the material more brittle. In manufacturing, cold working operations like bending or machining can introduce localized hardening, which may lead to cracking if not addressed. Post-process annealing is often used to restore ductility by allowing recovery and recrystallization, especially in components that require further forming or are subject to dynamic loads.

Ductile Failure in Metals

Ductile failure occurs when a material undergoes significant plastic deformation prior to fracturing. Unlike brittle failure, which is abrupt and without warning, ductile failure is often preceded by visible signs such as necking or stretching—allowing easier detection during inspection. The fracture surface usually displays a characteristic cup-and-cone appearance, particularly in parts subjected to tensile loads. Because this type of failure absorbs more energy, materials with high ductility are commonly chosen for applications that demand toughness and resistance to impact.

However, ductile failure can still be critical, especially when it results from overloading. If a part is subjected to stresses beyond its yield strength, it will begin to plastically deform, and if the load continues, it will eventually fail. This is common in components that are improperly sized or exposed to unexpected service conditions.

Strain localization is another contributing factor, where deformation concentrates in a specific region — often near thin sections, notches, or stress concentrators — leading to premature failure. Work hardening also plays a role; materials that have been cold worked during forming or machining may have reduced ductility and can fail under lower loads than anticipated if not properly annealed afterward.

Temperature significantly affects ductility. As temperatures rise, materials become more ductile but lose yield strength, increasing the risk of creep—slow, permanent deformation under load. Poor design geometry, such as sharp corners or sudden changes in shape, can concentrate stress and increase the likelihood of ductile failure. In machined parts, failure may result from over-machining critical sections, unrelieved residual stresses, or materials unsuited for the operating environment. While ductile materials offer a margin of safety through visible deformation, failure can still be severe if not addressed during design and manufacturing.

How Ductility is Measured

Ductility is typically quantified by how much a material can deform plastically before fracture, and the most common way to measure it is through a tensile test.

In this test, a standardized specimen is pulled apart in a controlled manner until it breaks. The two primary indicators of ductility from this test are elongation and reduction of area.

Elongation

Elongation is calculated by measuring the change in length of the specimen after fracture compared to its original gauge length. It’s usually expressed as a percentage, and it gives a direct sense of how much the material stretched before breaking. The higher the percentage, the more ductile the material.

Reduction of Area

Reduction of area, on the other hand, is determined by measuring the cross-sectional area at the fracture point and comparing it to the original area. This metric reflects how much the material necked down before failure, which is another hallmark of ductile behavior.

It's calculated by the following equation, using the tensile test.

Both of these measurements are influenced by factors like strain rate, temperature, and specimen geometry, so it’s important to follow standardized testing procedures — typically outlined in ASTM E8 or ISO 6892 — to ensure consistency.

In CNC machining and post-machining inspection, ductility measurements can help determine whether a material will perform reliably under load, especially in applications where deformation or impact resistance is critical.

Ductility in Commonly Machined Metals

Ductility plays a crucial role in how metals behave during CNC machining and directly influences both machinability and design decisions.

In commonly machined metals like aluminum, stainless steel, titanium, and various steels, ductility determines how a material will deform under cutting forces, how it responds to stress concentrations, and how it tolerates post-machining operations like bending or assembly.

Ultimately, understanding the ductility of the chosen metal helps mechanical engineers anticipate how a part will behave during and after machining. It informs decisions about tolerances, surface finishes, and post-processing steps, ensuring that the final component meets both functional and manufacturing requirements.

How Ductility Affects CNC Machining Operations

Ductility is crucial in CNC machining, as it determines how materials handle cutting forces and deformation. Highly ductile metals like aluminum and copper can be machined into complex shapes without cracking, allowing for smoother geometries, improved surface finishes, and lower risk of fracture during bending or forming.

During machining, ductile materials stretch on the outside and compress on the inside when bent—useful for forming or assembly processes like press fits or snap features. However, high ductility can cause issues such as material smearing, poor chip formation, and built-up edge on tools, which may affect surface quality and increase tool wear. Engineers mitigate these challenges by choosing suitable cutting parameters, tool materials, and cooling methods.

Engineers rely on ductility to guide choices around wall thickness, fillet radii, and tolerances in design for manufacturability (DFM). Highly ductile materials—especially in thin-walled sections—may deflect under tool pressure, leading to dimensional variances. To prevent localized deformation or failure, it is best to use generous radii and avoid sharp internal corners, promoting even stress distribution.

Choosing the Right Metal for Ductile Applications

Selecting the right metal for a ductile application requires a strategic approach that balances material properties, machining behavior, and end-use performance. The strategy begins with understanding the functional requirements of the part — including load conditions, environmental exposure, and desired mechanical performance — and then aligning those needs with the ductility profile of candidate materials.

Start by identifying the mechanical demands of the component. If the part will undergo significant deformation, impact, or dynamic loading, prioritize metals with higher ductility (e.g., aluminum, copper, or mild steel). These materials can absorb energy and deform without fracturing, making them ideal for applications where toughness and flexibility are critical.

Next, evaluate the material's machinability. Highly ductile materials are generally easier to machine, producing smooth finishes and predictable chip formation. However, excessive ductility can lead to issues like material smearing or edge build-up on cutting tools. In such cases, selecting the right tooling and optimizing cutting parameters — including feed rate, speed, and coolant strategy — becomes essential to maintain surface integrity and dimensional accuracy.

Consider the design geometry and tolerances. Ductile metals are more prone to deflection during machining, especially in thin-walled or complex features. Engineers should incorporate generous radii, avoid sharp internal corners, and ensure adequate wall thickness to prevent distortion. These DFM principles help maintain part stability and reduce the risk of post-machining failures.

💡Knowledge Base: Design Tips for CNC Machining

Finally, factor in post-processing and assembly requirements. If the part will be welded, bent, or press-fit after machining, ductile metals offer greater flexibility and reliability. Mild steel and aluminum, for example, respond well to forming operations and are less likely to crack under stress. For high-performance applications, consider how heat treatment or surface finishing might affect ductility and plan accordingly.

By integrating these considerations — functional performance, machinability, geometry, and post-processing — engineers can confidently select ductile metals that align with both design intent and manufacturing efficiency.
