Skip to content


Certifications ISO 13485:2016 | AS9100D | ITAR | FDA Registered | CAGE Code 5TTR7

An Engineer's Guide to CNC Machining Brass

This article explores the brass alloys most commonly used for machined components, along with key considerations across the production lifecycle, including design, machinability, surface finish, and sourcing.



Brass is a copper‑zinc alloy family that occupies a unique position in CNC machining. While often grouped casually with aluminum as an “easy” material, brass behaves very differently under the cutter. Its chip formation, tool interaction, surface finish behavior, and sensitivity to geometry all reflect its copper content, which brings both advantages and design risks.

It's most commonly used in precision, functional components rather than large structural parts. Its density and material cost generally limit its use to parts where performance advantages justify the tradeoff. Many brass components interact directly with fluids, electrical systems, or mechanical interfaces where predictable wear and corrosion behavior are essential.

Brass is typically chosen when a design requires a combination of machinability, corrosion resistance, electrical conductivity, and dimensional stability that aluminum or steel cannot simultaneously provide. In many precision assemblies, brass components serve functional roles where friction behavior, wear characteristics, or electrical performance matter more than strength‑to‑weight ratio.

Common reasons engineers select brass include:

  • Excellent machinability in leaded grades
  • Good corrosion resistance in indoor and mild outdoor environments
  • Stable dimensions with low residual stress
  • Favorable friction and wear behavior against steel
  • Electrical and thermal conductivity advantages over steels

In CNC machining, brass is frequently selected for components with fine features, tight tolerances, and repeatable thread quality. Its ability to machine cleanly without built‑up edge allows engineers to specify sharp internal details that would be risky in aluminum or stainless steel.

Typical CNC-machined brass applications include: valve bodies, fluid control components, electrical connectors, terminals, contact hardware, precision bushings, bearings, and wear sleeves, threaded inserts, fasteners, instrumentation, and metering components.

Commonly Machined Grades of Brass

The brass family includes dozens of standardized alloys, but C260 (Cartridge Brass) and C360 (Free‑Machining Brass) account for the vast majority of CNC‑machined brass parts. These alloys differ significantly in composition, mechanical properties, and machining behavior, and they should not be treated interchangeably from a DFM perspective.

The most important distinction for machining is lead content. Leaded brasses, particularly C360, are engineered specifically for machining efficiency. Non‑leaded brasses like C260 sacrifice machinability for improved ductility, corrosion resistance, or formability. Selecting the wrong alloy for a given geometry often results in unnecessary cycle time, burr formation, or surface finish challenges.

Alloy

Ultimate Strength

Yield Strength

Fatigue Strength

Shear Strength

Shear Modulus

Hardness

Elongation
C260 300-360 MPa 90-150 MPa  95-110 MPa  200-210 MPa  37-39 GPa 110-150 HB 30-45%
C360 330-370 MPa  115-150 MPa  85-100 MPa  185-200 MPa  36-38 GPa 130-160 HB 17-23%



  • C260
  • C360
  • C260

    Brass C260

    C260, also known as Cartridge Brass, is a non‑leaded brass alloy typically composed of approximately 70% copper and 30% zinc. It is valued for its excellent ductility, cold formability, and resistance to stress corrosion cracking relative to higher‑zinc brasses. These characteristics make it common in stamped, drawn, or formed components, but it is also CNC machined when lead‑free requirements or forming compatibility drive material selection.

    Download Material Datasheet

  • C360

    Brass C360

    C360 (e.g., free-cutting brass) is the most commonly machined brass alloy and the benchmark for machinability within the copper alloy family. It contains approximately 2.5–3.5% lead, which acts as an internal chip breaker and lubricant during cutting. This results in short, easily evacuated chips, low cutting forces, and exceptional surface finish capability.

     Download Material Datasheet

Production Considerations

From a manufacturing standpoint, brass offers exceptional machinability in certain grades, predictable surface finish outcomes, and excellent dimensional control when designs respect the alloy’s mechanical behavior. Unlike aluminum, brass is inherently heavier, stiffer, and more resistant to galling, making it well-suited for precision components where mass, wear resistance, or electrical properties matter.

Design

For engineers, the real challenge with brass is material selection discipline. Not all brasses machine the same way, and small changes in zinc content or lead addition can drastically alter chip formation, burr behavior, and achievable tolerances. Designs that assume “brass is brass” often encounter unnecessary cost, poor finishes, or geometry‑driven failure modes that could have been avoided with better alloy‑specific DFM.

C360 enables aggressive geometry and precision; C260 demands more conservative design. In both cases, stiffness, accessibility, and datum clarity drive manufacturability more than raw material properties.

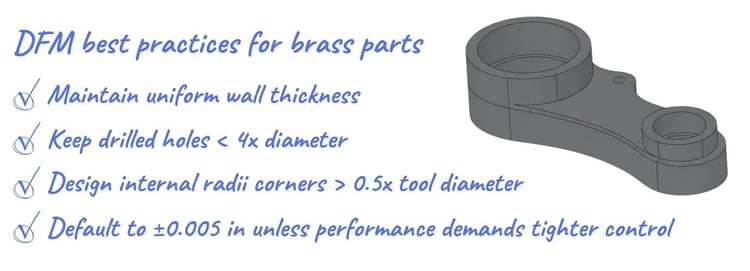

DFM best practices for brass parts

Engineers should design brass parts to machine cleanly in as few setups as possible, with clear reference surfaces and realistic expectations for tolerance and finish.



  • C260
  • C360
  • C260

    Brass C260

    Geometry problems in C260 typically stem from chip management and deflection, not strength limitations. Continuous chips can pack into slots or pockets, leading to surface damage, tool breakage, or inconsistent finishes. Thin walls and long unsupported features are particularly vulnerable because cutting forces are higher and less forgiving than in free‑machining brass.

    Another common trap is designing fine threads or sharp internal details that are easily achievable in C360 but marginal in C260 without special tooling or reduced feed rates. These features are possible, but they must be designed intentionally.

    Common C260 geometry traps to avoid:

    • Deep blind pockets with restricted chip evacuation
    • Thin walls adjacent to heavy material removal
    • Fine‑pitch threads in thin sections without relief
    • Sharp internal corners requiring micro‑tools
    • Long, unsupported features prone to vibration

  • C360

    Brass C360

    The primary risk with C360 is overconfidence. Because the material machines so well, engineers may design unnecessarily delicate features or apply overly tight tolerances that add cost without functional benefit. While C360 will often “make the part,” inspection and process control costs still scale with design complexity.

    Another trap is ignoring lead‑related regulatory or environmental constraints. C360 is not suitable for potable water systems or lead‑restricted applications without explicit approval.

    Common C360 geometry traps to avoid:

    • Overspecifying tolerances on non‑functional features
    • Very thin knife‑edge features prone to handling damage
    • Excessively deep micro‑features without functional justification
    • Designs that ignore lead‑content compliance requirements
    • Sharp external edges without defined break or chamfer

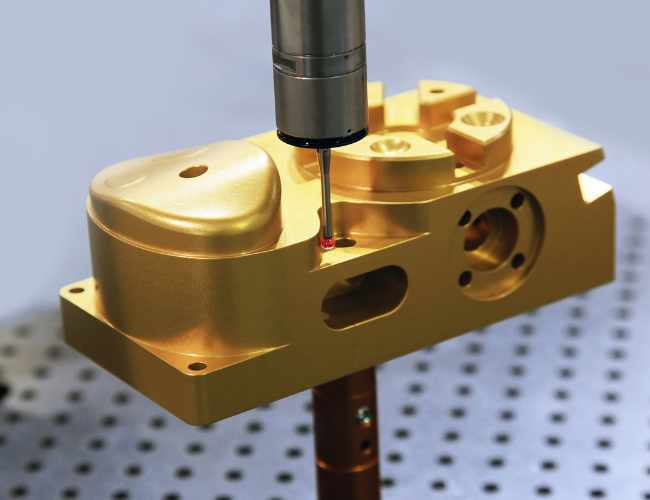

Machinability

In CNC machining, brass is frequently selected for components with fine features, tight tolerances, and repeatable thread quality. Its ability to machine cleanly without built‑up edge allows engineers to specify sharp internal details that would be risky in aluminum or stainless steel.

Brass machinability varies dramatically by alloy, but as a family, brasses exhibit low cutting forces, excellent thermal conductivity, and minimal tool adhesion compared to aluminum or stainless steel. Chip formation is the defining characteristic. Leaded brasses produce short, discontinuous chips that evacuate cleanly, while non‑leaded brasses produce longer, more ductile chips that require careful management. Understanding this distinction is critical for geometry design, tool selection, and cost control.

Brass supports high dimensional accuracy when parts are designed with stiffness and accessibility in mind. However, its relatively low modulus compared to steel means thin features can still deflect under cutting loads, especially in non‑leaded grades.

Key machining characteristics engineers should account for:

  • Excellent chip control in leaded alloys
  • Low tool wear and long tool life
  • Minimal built‑up edge risk
  • Sensitivity of thin features to cutting forces
  • Strong dependence of results on alloy selection

  • C260
  • C360
  • C260

    Brass C260

    From a machining standpoint, C260 is moderately machinable, not exceptional. It produces more continuous chips than leaded brasses and requires greater attention to tooling geometry, chip evacuation, and cutting parameters. Engineers should view C260 as a design‑driven choice, not a machining‑driven one.

    C260 machines best when designs favor open geometries, robust feature stiffness, and accessible toolpaths. It does not tolerate aggressive cutting with small tools as well as C360, and it is more sensitive to tool wear and heat buildup. Engineers should expect longer cycle times and slightly higher per‑part cost compared to free‑machining brasses.

  • C360

    Brass C360

    For CNC machining, C360 behaves almost ideally. It supports high feeds and speeds, produces minimal burrs, and holds tight tolerances with excellent repeatability. When engineers think of brass as “easy to machine,” they are almost always thinking of C360.

    C360 enables geometry freedom, but that freedom should still be used intentionally. While it tolerates small tools and complex features better than most metals, over‑complicated designs still drive cost through tool changes, inspection burden, and setup complexity.

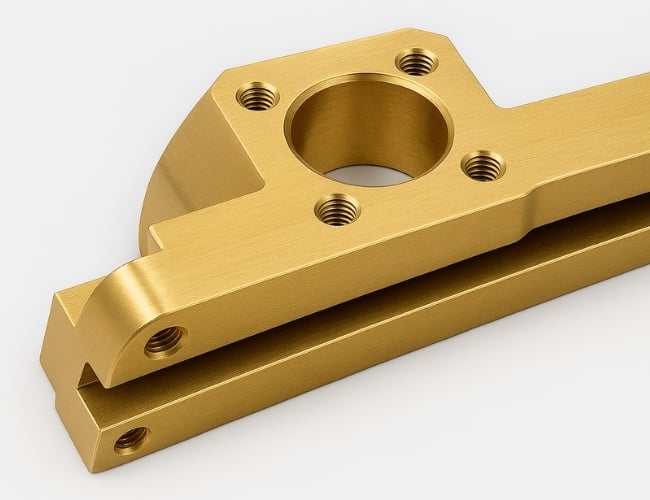

Surface Finish

Finishing Options

Media blasting, electroplating, powder coating, bead blasting, and sanding

Engineers also favor brass when surface finish quality and edge definition are critical. Certain free‑machining brasses produce extremely clean cuts with minimal burrs, enabling sharp features and fine threads without secondary deburring operations. This makes brass attractive for high‑precision, customer‑facing, or sealing‑critical components.

Mechanical polishing is the most widely used surface finishing method for brass components because of the material's relatively low hardness, fine grain structure, and excellent ductility.

Important surface finish considerations:

  • Define Ra only where it affects fit, sealing, wear, or appearance to avoid unnecessary cost and machining time
  • Account for material removal from finishing operations
  • Design finishes with downstream processes in mind (e.g., plating, coating adhesion)
  • Polished brass readily oxidizes unless protected; select a finishing method based on the application's environment

  • C260
  • C360
  • C260

    Brass C260

    C260 finishes well, but not effortlessly. Surface finish quality is highly dependent on tool sharpness and cutting strategy. Unlike leaded brass, C260 is more prone to subtle tearing or smearing if tools are worn or feeds are incorrect. Cosmetic requirements should be specified realistically and validated early.

    C260 responds predictably to polishing, brushing, and plating operations. Because it contains no lead, it is often preferred for decorative or consumer‑facing applications where finish uniformity and compliance matter.

    Key C260 finishing interactions to design for:

    • Tool condition strongly influences surface finish
    • Polishing and brushing are effective for cosmetic parts
    • Plating adhesion is generally excellent
    • Avoid aggressive bead blasting on thin features
    • Account for dimensional change if plating is applied

  • C360

    Brass C360

    C360 produces excellent as‑machined surface finishes, often eliminating the need for secondary finishing. It also responds well to polishing and plating, although lead content can influence plating behavior if surface preparation is inconsistent.

    Because C360 machines so cleanly, it is often used where as‑machined finishes are customer‑visible. Engineers should still define surface finish requirements explicitly rather than assuming “brass will look good.”

    Key C360 finishing interactions to design for:

    • As‑machined finishes are often sufficient
    • Plating requires controlled surface preparation
    • Lead content may affect certain regulatory environments
    • Burr formation is minimal but not zero
    • Edge condition should be explicitly specified

Sourcing

Brass is more expensive than aluminum on a raw material basis, and its density increases part weight and material cost. However, machining efficiency—especially in C360—often offsets this through reduced cycle time, lower tool wear, and minimal secondary operations.

Lead time is typically driven more by material availability and compliance requirements than machining complexity. Common brass grades are widely available, but lead‑free or specialty alloys may extend procurement timelines.

Designers have significant control over cost by aligning geometry, tolerance, and alloy choice with actual functional requirements rather than defaulting to over‑precision.

Primary cost drivers include:

  • Commodity exposure drives price, with brass costs primarily tied to copper (and zinc) market volatility and short pricing validity
  • Alloy selection matters, as free‑machining, low‑lead, DZR, or regulated grades carry higher mill premiums and limited supply options
  • Form factor and size drive inefficiency, with non‑standard diameters, hex bar, or custom lengths increasing MOQs, scrap, and mill charges
  • Lead time and availability add cost, especially during capacity constraints, often showing up as expedite premiums in part pricing
  • Machinability affects total cost, where harder or low‑lead brasses increase cycle time, tooling wear, and scrap
  • Compliance and logistics add hidden overhead, including traceability, certifications, tariffs, and freight
Machinist loads parts onto a CNC mill fixture

Let's connect

Want to learn more about our CNC machining services? Schedule a time to speak with our team.
