Technical Guide to CNC Machining Aluminum: Alloys, Design Rules, Tolerances & Finishing

5052‑H32 is a non‑heat‑treatable, strain‑hardened Al‑Mg alloy selected primarily for corrosion resistance, formability, and weldability, particularly in marine and industrial environments. It is widely used for sheet metal components such as tanks, brackets, and enclosures. While 5052 can be CNC machined, it is not chosen for machining efficiency; it is used when environmental exposure, forming requirements, or weldment strategy drive material selection.

In machining, 5052 behaves softer and gummier than alloys such as 6061, 7075, or 2024. It is more prone to smearing, built‑up edge, and stringy chip formation if tooling geometry and chip evacuation are not well controlled. From a design standpoint, this favors open access features, larger tools, and geometries that avoid deep, narrow slots or heavy cosmetic finishing passes. Cosmetic results are achievable, but the geometry must support stable, repeatable finishing toolpaths.

Engineer‑focused DFM considerations for 5052‑H32:

• Favor larger cutters and open access features to support chip evacuation and reduce built‑up edge
• Avoid over‑specifying tight tolerances on thin, sheet‑like features; 5052 deflects more readily under clamping and cutting forces
• Select 5052 when corrosion resistance, formability, or weldability outweigh maximum strength requirements (UTS ≈ 228 MPa in common sheet/tread plate conditions)
• If fatigue is a requirement, use an appropriate fatigue methodology; referenced sheet/tread plate data lists fatigue strength around 117 MPa
• Account for thickness‑dependent elongation (e.g., ~12% at 1/16″ vs ~18% at 1/2″) when defining bend radii and formed features

Geometry Traps

5052‑H32 is not a free‑machining alloy, and geometry problems most often arise when parts are designed as if they will machine like 6061. Issues are most pronounced in thin, wide, or sheet‑like parts where flexibility, fixturing, and chip evacuation dominate machining behavior. Because 5052 is frequently chosen for formed or welded structures, the most robust designs are typically form‑friendly or fixture‑friendly, rather than geometries that require long tool reach, small cutters, or extensive post‑machining finishing.

Machining guidance commonly describes 5052 as soft and prone to built‑up edge when chip control is poor. As a result, designs that force small tools, deep slots, or poorly evacuated pockets increase the risk of chip welding, burr formation, and inconsistent surface finish.

Common 5052‑H32 geometry traps to avoid:

• Deep, narrow pockets or slots that restrict chip evacuation and promote chip welding
• Thin, wide plates that distort under clamping and cutting forces; include ribs or defined fixturing lands
• Very small internal radii that require small‑diameter tools, increasing cycle time and burr risk
• Cosmetic surfaces that demand heavy finishing after welding or forming; design with finishing sequence in mind
• Threads in thin sections without adequate engagement; use thicker bosses or inserts for load‑bearing joints

Finishing Interactions

5052’s primary finishing advantage is its inherent corrosion resistance, which is a key reason it is selected for marine and industrial applications. It is also readily weldable. Finishing challenges are usually related to appearance consistency, not performance: 5xxx alloys can respond differently to anodizing or coloring than 6xxx “architectural” alloys, and welds or heat‑affected zones may finish differently than base material. When appearance matters, cosmetic surfaces should be designed to avoid visible welds or to be produced from consistent stock with consistent toolpaths.

If anodizing is used, dimensional change must be planned for. Anodizing is a conversion coating, and a common rule of thumb is roughly equal penetration and build‑up. This is particularly important for gasket grooves, mating faces, and slip‑fit features.

Key 5052‑H32 finishing interactions to design for:

• Expect strong corrosion performance; this is a defining characteristic of the alloy
• Anticipate finish variation between weld zones and base material; locate cosmetic faces accordingly
• Account for anodize dimensional change (approximately 50% penetration and 50% surface growth) on fit‑critical features
• Use chromate conversion coatings when corrosion resistance and paint adhesion are required with minimal dimensional impact
• If painting is planned, specify surface preparation early (e.g., conversion coat + primer) so tolerances reflect the full process stack

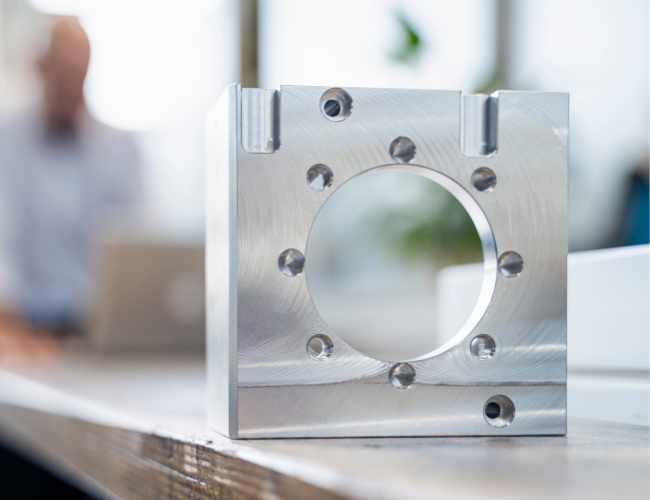

6061‑T6 is the workhorse alloy for CNC machining due to its balanced combination of strength, corrosion resistance, availability, and predictable machining behavior. It is often the correct default when higher strength (7075/2024) or improved corrosion resistance and formability (5xxx series) are not required. For multi‑feature, toleranced parts, 6061 offers an excellent balance of procurement simplicity and manufacturability.

Design issues with 6061 are usually self‑inflicted. Over‑constrained tolerances and thin, flexible geometries can lead to part movement during machining despite the alloy’s good machinability. Thin webs, long ribs, and deep pockets can behave like unintended flexures. When flatness or dimensional stability is critical, stress‑relieved product forms such as T651 plate and machining strategies that balance material removal should be considered.

Engineer‑focused DFM considerations for 6061‑T6:

• Use stiffness‑driven geometry: consistent wall thickness, supporting ribs, and minimal unsupported thin sections
• Keep internal corner radii tool‑friendly; avoid very small radii that require small tools and long cycle times
• Apply tight tolerances only where function requires them; typical UTS falls in the ~290–338 MPa range
• For cyclic loading, note the commonly cited fatigue strength of ~96.5 MPa at ~500 million fully reversed cycles
• Do not equate cosmetic finish with bead blasting; aggressive blasting can reduce fatigue performance and distort thin features

Geometry Traps

6061’s versatility can lead engineers to overestimate its forgiveness. Common failures stem from thin walls, deep pockets, small radii, and tolerance schemes that ignore real fixturing and cutting conditions. Features that appear stable in CAD can vibrate or deflect during machining, degrading surface finish and dimensional control.

The most costly geometry trap is applying tight tolerances across large, flexible features. While a dimension may be achievable once, maintaining it across multiple setups and production runs increases inspection burden and process variability. Designs that support stable fixturing and datum flow—clear reference surfaces, robust clamping areas, and symmetric material removal—deliver far better repeatability than “thin and elegant” geometry.

Common 6061 geometry traps to avoid:

• Long, thin walls without support, which deflect and lead to taper, chatter, and dimensional drift
• Deep pockets with thin floors that distort during clamping and finishing passes
• Very small internal radii that force micro‑tools and increase cycle time and breakage risk
• Tall bosses or standoffs with minimal base fillets, where stress and vibration concentrate
• Datum schemes requiring multiple re‑clamps without stable reference surfaces, leading to stacked error

Finishing Interactions

6061 is frequently selected when anodizing is planned because it typically produces consistent, predictable results. The primary design risk is not anodize compatibility, but failure to account for anodize growth on functional surfaces. For fits, sealing faces, and bearing bores, designers must decide whether surfaces should be coated, masked, or finished after anodizing.

Anodizing is a conversion coating, with thickness split between penetration and surface growth. A common planning rule is roughly half penetration and half build‑up, meaning dimensional change per surface is approximately half the coating thickness. Anodizing can also reduce fatigue endurance depending on process parameters, which is relevant for cyclically loaded components such as frames, arms, and brackets.

Key 6061 finishing interactions to design for:

• Plan for anodize dimensional change (≈50% penetration / 50% growth) on bores, threads, and precision fits
• Explicitly define which functional surfaces are coated versus masked
• Treat anodize as a fatigue variable when fatigue performance matters
• Use conversion coating when paint adhesion and corrosion resistance are needed with minimal dimensional impact
• For hard anodize, specify realistic edge breaks and radii; sharp edges can burn or coat inconsistently

6063‑T6 is commonly referred to as the “architectural” alloy due to its excellent extrudability and anodized surface appearance. It is widely used in rails, frames, housings, heat sinks, and other components produced from extrusions rather than plate or bar. Compared to 6061‑T6, 6063 offers lower strength and hardness but superior cosmetic outcomes, particularly for anodized parts.

Machining 6063 is well suited to trimming, facing, drilling, and adding light features to extrusions. However, it is softer than 6061 or 7xxx alloys and more prone to edge smearing if pushed with aggressive cutting parameters. The primary design advantage is the ability to integrate near‑net geometry into the extrusion, reducing machining time, fixturing, and cost. The primary risk is assuming 6063 will perform like 6061 in strength‑ or stiffness‑driven designs.

Engineer‑focused DFM considerations for 6063‑T6:

• Use 6063 strategically for near‑net extruded profiles to minimize machining operations
• Account for lower mechanical properties than 6061 (typical tensile strength ~241 MPa, hardness ~73 HB)
• If fatigue is relevant, validate against appropriate data (commonly cited fatigue strength ~96 MPa, application‑dependent)
• Design cosmetic anodized surfaces with toolpath direction and surface prep in mind to prevent tool marks telegraphing through anodize
• Avoid ultra‑thin decorative fins when tight positional tolerances are required after anodizing or handling

Geometry Traps

6063 is optimized for extrusion quality and surface finish, not maximum strength. Geometry problems typically arise when the alloy is used in strength‑critical applications better suited to 6061 or 7xxx alloys, or when extruded stock is treated like plate or bar with respect to straightness, residual stress, and stiffness.

Extrusions introduce profile‑specific behavior: thin sections deflect more readily during secondary machining, and long profiles can distort if material is removed asymmetrically. Designs should leverage the extrusion’s geometry for stiffness during machining rather than allowing it to behave as a flexible spring.

Common 6063‑T6 geometry traps to avoid:

• Very thin fins expected to meet tight flatness or parallelism after machining
• Assuming long extrusions are perfectly straight without machining or fixturing allowances
• Sharp extruded corners used as sealing or locating features; specify realistic edge breaks and radii
• Large asymmetric pocketing on one side of long profiles, which promotes bowing
• Strength‑critical parts designed as if 6063 has equivalent performance to 6061

Finishing Interactions

6063 is frequently selected specifically for anodizing quality and visual consistency, making it well-suited for exposed architectural and consumer components. Cosmetic outcomes are highly sensitive to machining direction, surface prep, and toolpath consistency. Mixing as‑extruded surfaces with heavily machined faces on the same cosmetic plane can produce visible variation after anodizing.

As with all anodized aluminum, dimensional change must be considered. Anodizing is a conversion coating, with thickness split between penetration and surface growth, making fit‑critical features particularly sensitive.

Key 6063‑T6 finishing interactions to design for:

• Expect excellent anodize appearance when surface prep and toolpaths are controlled
• Avoid placing cosmetic surfaces across welds or mixed material conditions
• Account for anodize dimensional change on mating features and gasket surfaces
• Qualify cosmetic requirements with representative samples when appearance is critical
• Consider conversion coating plus paint if uniform color is more important than anodized aesthetics

7050‑T7451 is a high‑strength aerospace plate alloy developed to deliver high strength in thick sections with improved resistance to stress‑corrosion cracking (SCC) and exfoliation compared to peak‑strength 7xxx alloys such as 7075‑T6. It is typically selected for thick, highly loaded components where environmental exposure and inspection requirements demand better corrosion‑cracking performance. Common applications include bulkheads, wing structures, and heavily loaded fittings.

From a machining perspective, 7050 behaves like a typical high‑strength aluminum: it machines efficiently with good chip formation, but it is unforgiving of poor strategy. The primary DFM challenge is distortion control. Thick plate, deep pockets, and high material removal rates can release residual stresses, making geometry and machining sequence critical. Balanced stock removal, symmetric pocketing, and leaving finish stock for stabilization often determine whether a part stays flat or distorts after unclamping.

Engineer‑focused DFM considerations for 7050‑T7451:

• Expect high mechanical performance (typical UTS ~496 MPa, density ~2.78 g/cm³)
• Hardness is commonly cited around ~150 HB for aerospace plate products
• Design deep pocketed structures with distortion prevention in mind (balanced machining, stiffness‑preserving ribs)
• For fatigue‑critical parts, rely on program‑specific allowables and S–N data tied to surface finish, mean stress, and notch geometry
• Treat finishing and corrosion protection as part of the design; moisture‑trapping geometry increases corrosion‑assisted cracking risk

Geometry Traps

7050‑T7451 is valued for strength and improved SCC/exfoliation resistance, but geometry failures are almost always related to distortion, not machinability. Aggressive pocketing in thick billet is common; distortion becomes unavoidable when pockets are asymmetric, unsupported, or sequenced poorly. Balanced geometry and staged material removal are essential to avoid post‑machining warp.

Datum strategy is equally important. Large aerospace components often require multiple setups, so datums must remain stable after heavy roughing. Thin floors, wide unsupported spans, and reliance on re‑clamped features for tight positional control all increase risk.

Common 7050‑T7451 geometry traps to avoid:

• Deep pocketing on one side of thick plate without balancing features
• Thin floors beneath large cavities that deflect during finishing and clamping
• Long‑reach, small‑tool features in poorly evacuated pockets, which increase heat and tool wear
• Tight true‑position requirements across multiple re‑clamps without robust, stable datums
• High residual tensile stress from press fits or interference features in corrosive environments, which can amplify SCC risk

Finishing Interactions

Because 7050‑T7451 is often used where corrosion‑cracking performance matters, finishing and environmental exposure are part of the mechanical design. While the alloy offers improved SCC and exfoliation resistance relative to other high‑strength options, resistance is not immunity. Geometry that traps moisture, salt, or creates crevice conditions can negate the benefits of the temper.

Anodizing requires particular care. Multiple studies show fatigue degradation in 7050 associated with anodizing, with performance dependent on anodize type and surface condition. When fatigue life is a requirement, anodize must be treated as a controlled design variable rather than a cosmetic choice. Dimensional planning follows the standard anodize rule of thumb: approximately half penetration and half surface growth.

Key 7050‑T7451 finishing interactions to design for:

• Treat SCC and exfoliation exposure as explicit design inputs
• If fatigue and anodizing both matter, use allowables and qualification consistent with the anodize process
• Plan for anodize dimensional change (≈50% penetration / 50% growth) on bores and interfaces
• Use conversion coating as a paint base or corrosion control method when minimal thickness change is required
• Avoid aggressive blasting on fatigue‑critical surfaces; surface damage combined with coating can shift crack initiation behavior

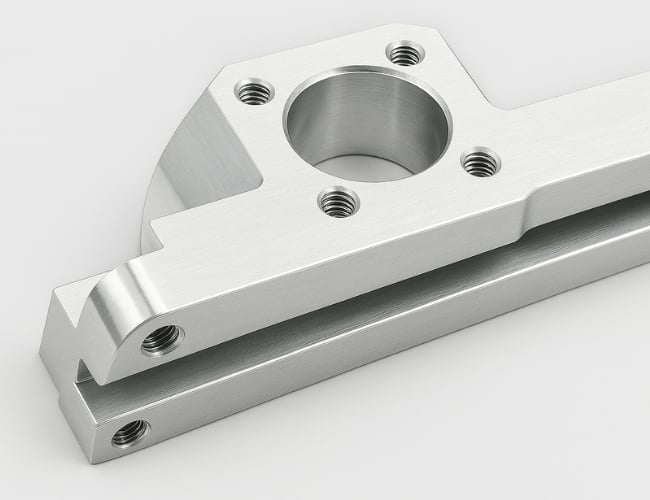

7075‑T6 is selected when very high strength‑to‑weight and stiffness are required alongside excellent machinability. It is widely used in aerospace, high‑performance mechanical systems, and precision components. The alloy machines crisply, holds edges well, and supports high‑quality surface finishes with appropriate process control, which is why many engineers consider it a “machinist‑friendly” high‑strength aluminum.

The tradeoffs are well known. 7075‑T6 is susceptible to stress corrosion cracking (SCC) in certain environments and is generally unsuitable for welding. For parts exposed to sustained tensile stress in corrosive conditions, engineers often select over‑aged tempers (e.g., T73) or move to 7050. As with all material selection, 7075 should be specified only when its strength, stiffness, or wear resistance is functionally required.

Engineer‑focused DFM considerations for 7075‑T6:

• Very high strength: UTS typically ~510–540 MPa, with elongation ~5–11% depending on form and thickness
• Fatigue strength commonly cited around ~159 MPa; hardness ~150 HB
• Density approximately ~2.78 g/cm³
• Avoid designs that rely on welding; use mechanical joints, interference fits, or adhesive bonding
• When anodizing fatigue‑critical parts, treat surface condition and fillet quality as part of the mechanical design

Geometry Traps

The primary risk with 7075‑T6 is unintentionally creating SCC‑favorable stress states through geometry. Sustained tensile stress at the surface combined with electrolytes can be introduced by press fits, sharp transitions, thread runouts, and highly preloaded joints. A common failure mode is an interference feature or sharp edge near a free surface that generates tensile hoop stress in a corrosive environment.

7075 is also frequently used in fatigue‑sensitive applications, which ties geometry and finishing together. Sharp features, poor transitions, and surface damage can dominate fatigue life even when bulk material strength is high.

Common 7075‑T6 geometry traps to avoid:

• Sharp internal corners or abrupt section changes in high‑stress regions
• High‑interference press fits or dowel pins used in corrosive environments without mitigation
• Threads placed too close to free edges or lacking proper runout relief
• Thin ligaments between holes or slots under preload
• Crevice geometries that trap electrolytes near stressed areas

Finishing Interactions

Finishing choices for 7075‑T6 are closely tied to environmental and fatigue risk. SCC susceptibility in chloride‑bearing environments is a known limitation of the T6 temper, which makes surface protection, drainage, and joint design critical. This does not preclude the use of 7075, but it does require intentional design of exposed and stressed surfaces.

Anodizing deserves particular attention. Technical literature consistently shows that anodizing can reduce fatigue endurance due to brittle surface layers, defects, or pretreatment‑induced pits. When fatigue performance matters, anodize type and surface condition must be treated as controlled design variables. Dimensional planning follows standard anodize behavior, with approximately equal penetration and surface growth.

Key 7075‑T6 finishing interactions to design for:

• Treat SCC exposure as a design constraint; surface protection and environment control matter
• If anodizing and fatigue are both critical, qualify fatigue allowables for the specific anodize process
• Account for anodize dimensional change (≈50% penetration / 50% growth) on bores and interfaces
• Use conversion coating when corrosion resistance and paint adhesion are needed with minimal thickness change
• Validate cosmetic requirements for dyed anodize; high‑strength alloys are less forgiving visually than 6xxx alloys

MIC‑6 is a precision cast aluminum tooling plate engineered for flatness, dimensional stability, and consistent machinability, not maximum strength. It is commonly used for fixture plates, tooling bases, machine tables, vacuum chucks, and prototype baseplates—applications where staying flat during and after machining matters more than tensile strength. Its cast, stress‑relieved structure minimizes movement after heavy material removal, which is why it is widely used in manufacturing and automation tooling.

Designing with MIC‑6 requires respecting its role as a stable platform material, not a structural alloy. While it offers excellent dimensional stability, it is not intended for highly loaded or fatigue‑critical features typical of 7xxx wrought alloys. Thin bosses, heavily loaded threads, and cantilevered features should be used cautiously or validated explicitly.

Engineer‑focused DFM considerations for MIC‑6:

• Use MIC‑6 when flatness and post‑machining stability are the primary requirements
• Do not treat it as a high‑strength structural substitute for 6061, 7075, or 7050 without validated allowables
• Leverage its strengths: large planar datums, hole grids, pockets, and channels
• Evaluate cosmetic finishes carefully; cast microstructure can affect anodized appearance
• For load‑bearing threaded features, use inserts or geometry that reduces bearing and stripping risk

Geometry Traps

MIC‑6 performs best in plate‑like geometries and poorly in beam‑like geometries. Problems arise when it is treated like a high‑strength wrought alloy rather than a cast tooling plate optimized for stability. Thin arms, long cantilevers, and highly stressed lugs can work in limited cases, but only with appropriate allowables and safety factors.

Common MIC‑6 geometry traps to avoid:

• Load‑bearing cantilevers or arms designed as if MIC‑6 equals 6061 or 7075
• Highly loaded tapped holes in thin sections without sufficient engagement or inserts
• Knife‑edge features and very thin walls sensitive to casting microstructure variability
• Designs that rely on welding as a primary manufacturing method
• Class‑A cosmetic requirements without accounting for cast surface variability

Finishing Interactions

MIC‑6 is typically used in functional tooling where finishing is driven by wear resistance or corrosion control, not appearance. When anodizing is specified, cast microstructure and local porosity can affect cosmetic consistency, particularly on deeply machined surfaces. As a result, conversion coating with paint or a functional anodize is often selected based on durability rather than aesthetics.

Standard anodize dimensional behavior still applies. Precision interfaces such as vacuum sealing faces, bearing lands, and dowel bores require dimensional compensation or masking.

Key MIC‑6 finishing interactions to design for:

• Preserve flatness‑critical datums; avoid aggressive finishing processes that induce distortion
• Account for anodize dimensional change (≈50% penetration / 50% growth) on precision features
• Use conversion coating to promote paint adhesion and corrosion resistance with minimal thickness impact
• Validate cosmetic expectations with samples when appearance matters
• For sliding or wear surfaces, specify coating thickness and masking strategy for locating features
