What to know about CNC machining aluminum?

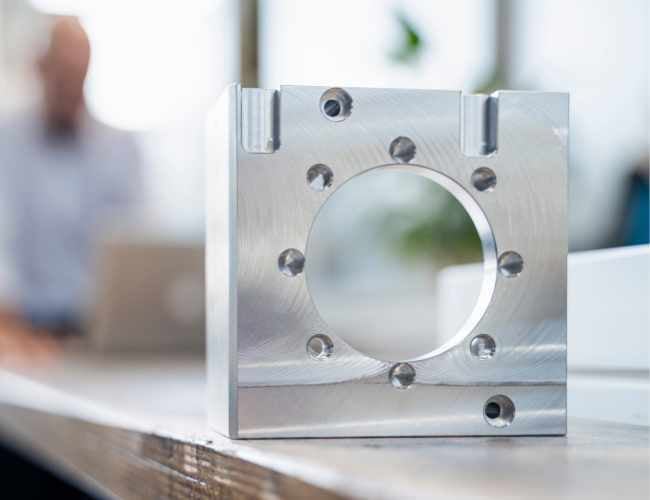

Aluminum CNC machining is a subtractive manufacturing process: a computer-controlled machine removes material from an aluminum block, plate, bar, or billet until the programmed part shape remains. It is used to make accurate, repeatable components with controlled tolerances and surface finishes.

Aluminum offers a broad processing window, allowing high material removal rates, predictable tool wear, and consistent dimensional control when parts are designed appropriately.

Aluminum’s appeal is not just ease of machining, but flexibility. A wide range of alloys exists to balance strength, fatigue resistance, corrosion behavior, thermal performance, and cost. However, this same variety can introduce risk when material selection and feature design are not aligned with machining realities.

Download the aluminum material data sheet

What are the advantages of CNC machining aluminum?

CNC machining aluminum combines excellent machinability, a high strength-to-weight ratio, and fast production cycles. It’s compatible with tight tolerances and complex shapes, making it a great choice for precision components.

The main advantages include:

• High strength-to-weight ratio
• Excellent machinability
• Short cycle times
• Good corrosion resistance
• Compatible with anodize and other surface treatments

What are the challenges of CNC machining aluminum?

Aluminum is generally CNC-friendly, but its softness, ductility, and heat behavior create quality-control challenges. The main risks are material sticking to the cutter, chip buildup, part distortion, chatter, burrs, and inconsistent dimensions.

The main challenges include:

• Built-up edge
• Galling
• Chip evacuation
• Part deflection and warping
• Heat control
• Chatter and vibration

6061 is the most commonly used alloy for CNC machined components made of aluminum. It’s strong, easy to machine, anodizes well, and is cheaper than 7075.

Not all aluminum alloys machine the same way. Alloy composition, temper, and heat treatment all influence cutting behavior, chip formation, surface finish, and dimensional stability. While hundreds of aluminum alloys exist, most CNC-machined components fall into a small subset that balances availability, cost, and performance.

*Please note that the mechanical properties are estimates and should only be used to inform research

How to pick the right aluminum grade?

For most CNC machined parts, 6061-T6 is the best all-around aluminum grade, balancing strength, machinability and cost. Choose 7075-T6 when you need maximum strength for aerospace or high-stress parts. For top corrosion resistance with low strength, use 1100 or 3003.

Picking an aluminum grade is about trade-offs. No single alloy does everything best. The right choice depends on what matters most for your part. Once you’ve defined the primary demand or limiting factor, alloy selection can be fairly straightforward.

• Strength? 7075-T6
• Corrosion resistance? 5052 or 5083
• Machinability? 6061 or 2011
• Welding? 5052 or 6061
• Budget constraints? 6061-T6

Anodize is the most widely used surface finishing method for aluminum components.

Aluminum can take a machine finish, Alodine, type II and type III anodize, PTFE, ENP, media blasting, tumble polishing, nickel plating, and powder coating as a surface finish option.An aluminum part’s surface finish is highly dependent on alloy selection, tooling condition, and toolpath strategy. Softer alloys can produce excellent finishes, but they are also more prone to smearing if tools are not sharp or cutting parameters are incorrect.

Tip: Be cautious about specifying cosmetic finishes on non-functional surfaces, as this often drives additional finishing passes without improving performance.

Important surface finish considerations:

• Tight tolerances increase cycle time and inspection effort
• Thin walls are more susceptible to distortion
• Surface finish varies by alloy and tool condition
• Post-processing (e.g., anodizing) affects final dimensions

Designing aluminum parts for CNC machining is largely about maintaining stiffness and consistency. Aluminum’s lower modulus of elasticity compared to steel means it deflects more under cutting forces, particularly in thin sections or unsupported features.

Good DFM practice focuses on keeping the part rigid throughout the machining process, not just in its final form.

• Design thin webs/ribs so they can be machined with balanced material removal and multiple light passes
• Internal corners should be larger than the minimum tool radius and preferably sized to keep the cutter ≤1.5× the corner radius in finishing
• Account for anodize growth on critical fits
• Avoid deep, narrow cavities that force long-reach tools and chip re-cutting
• Consolidate functional surfaces and keep nonfunctional surfaces to “as-machined”
